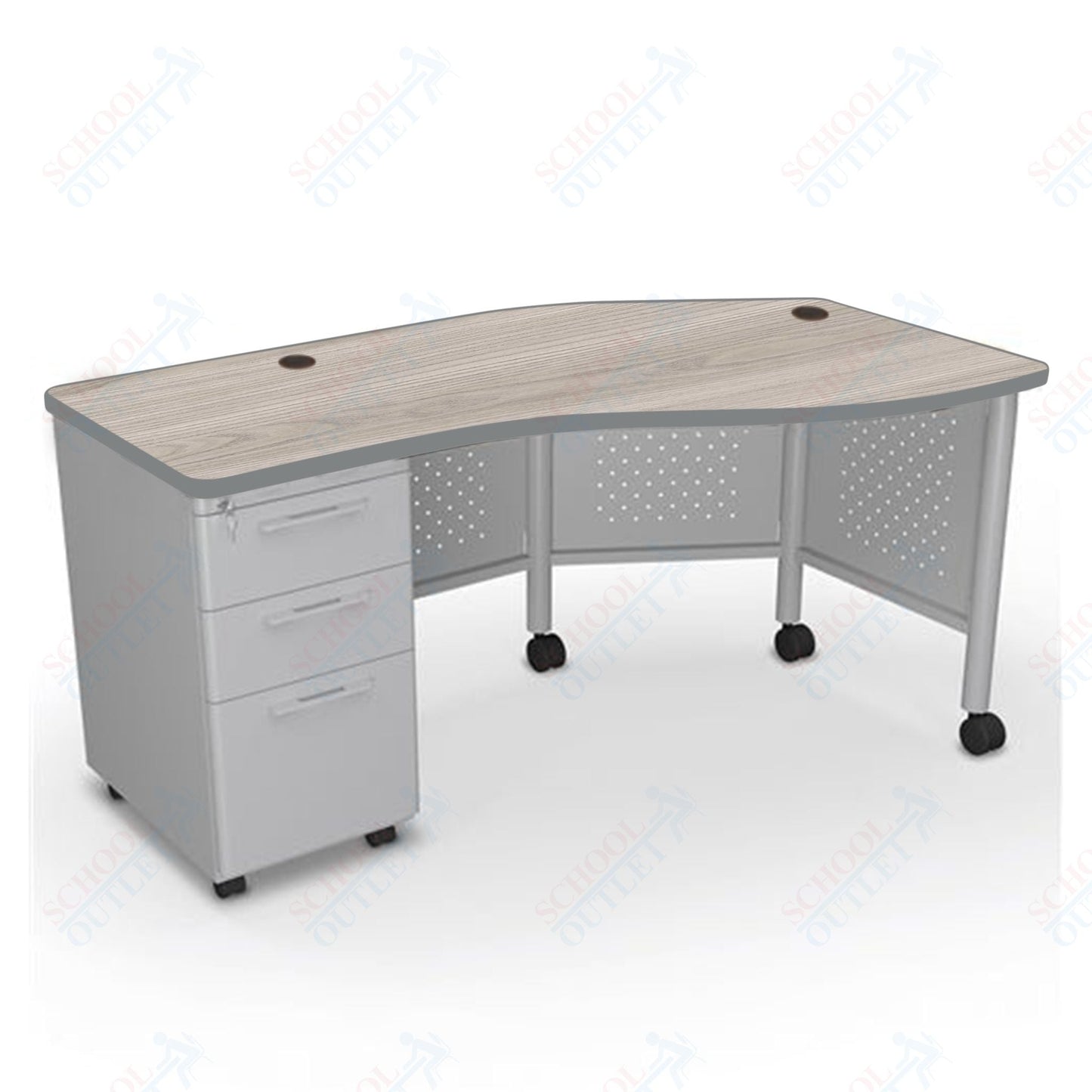

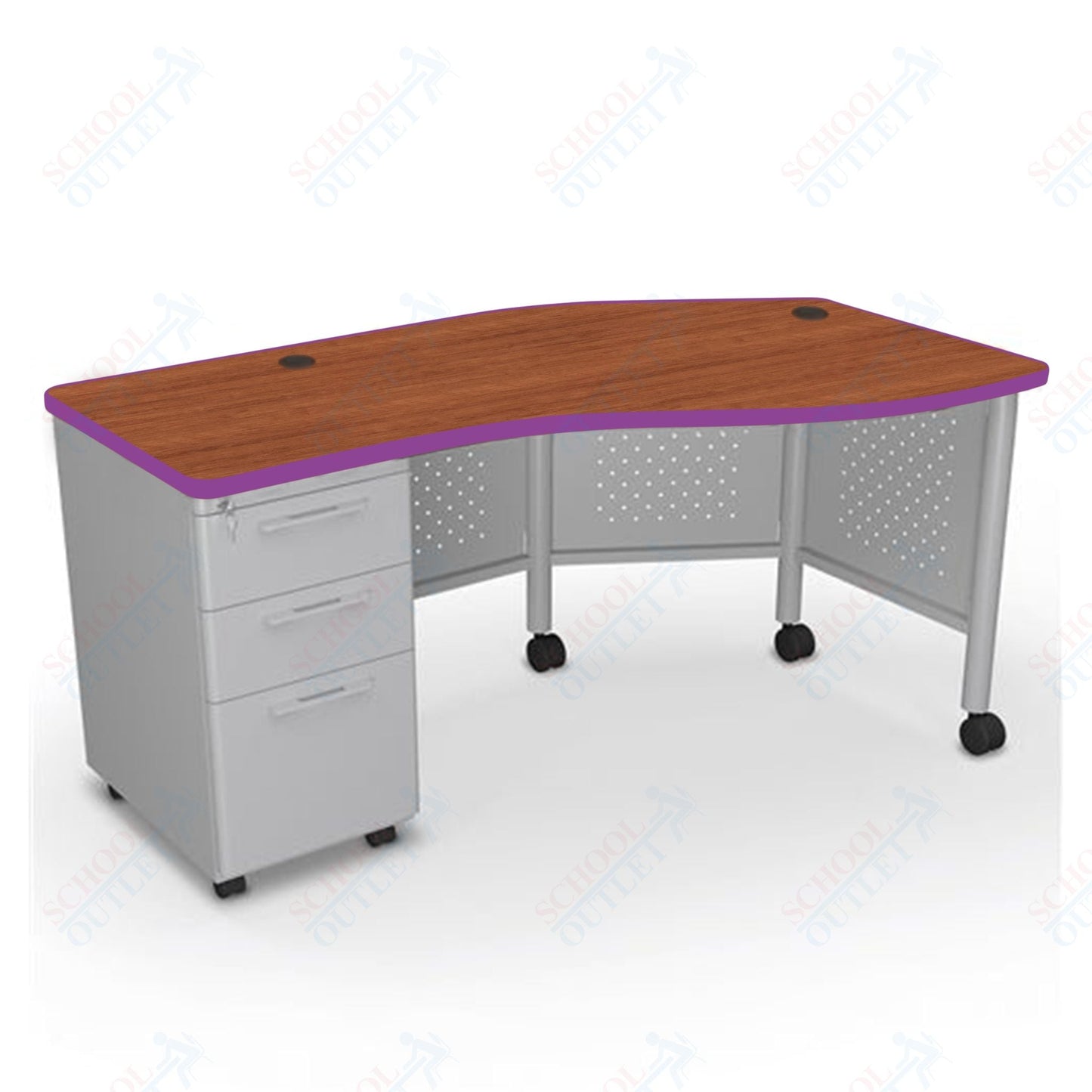

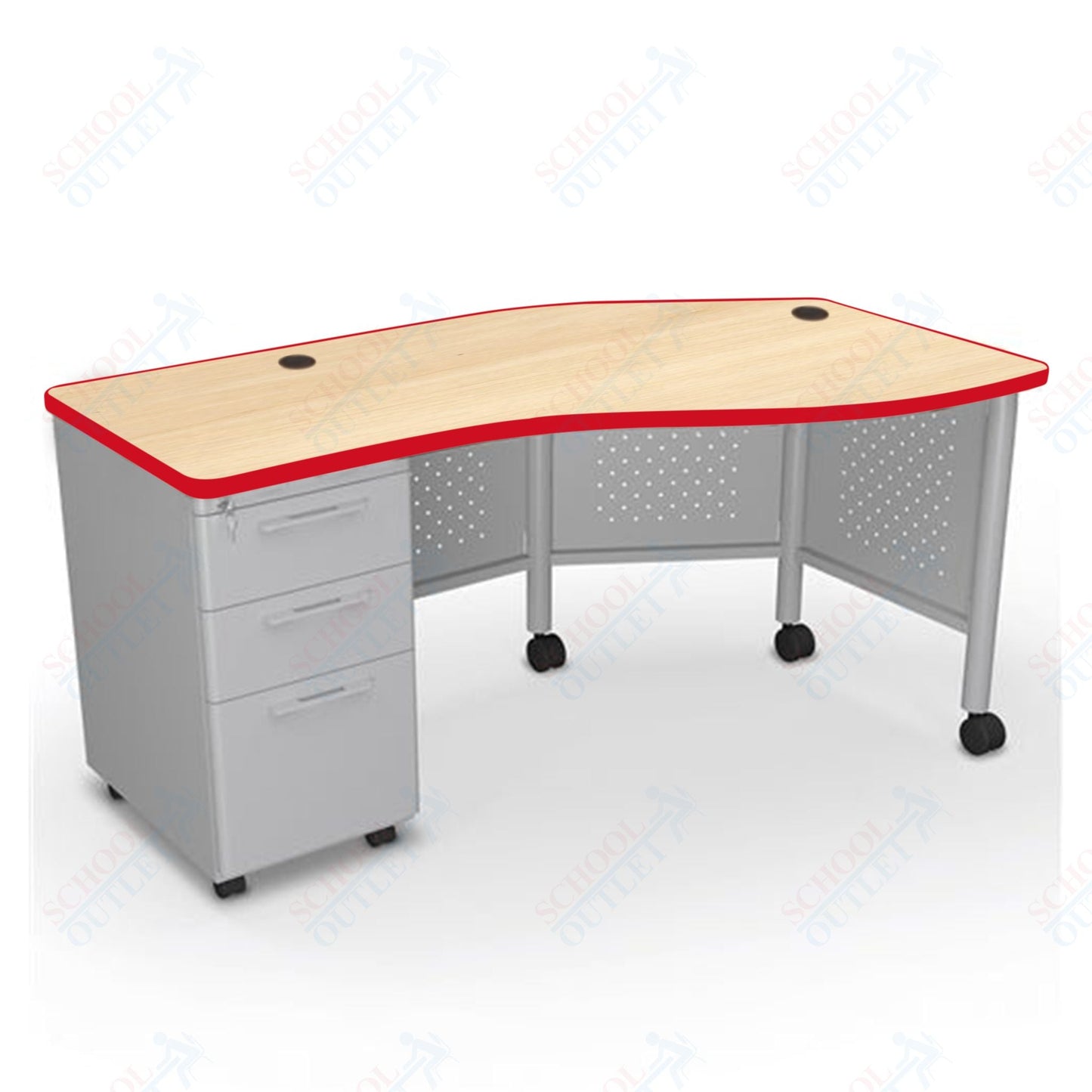

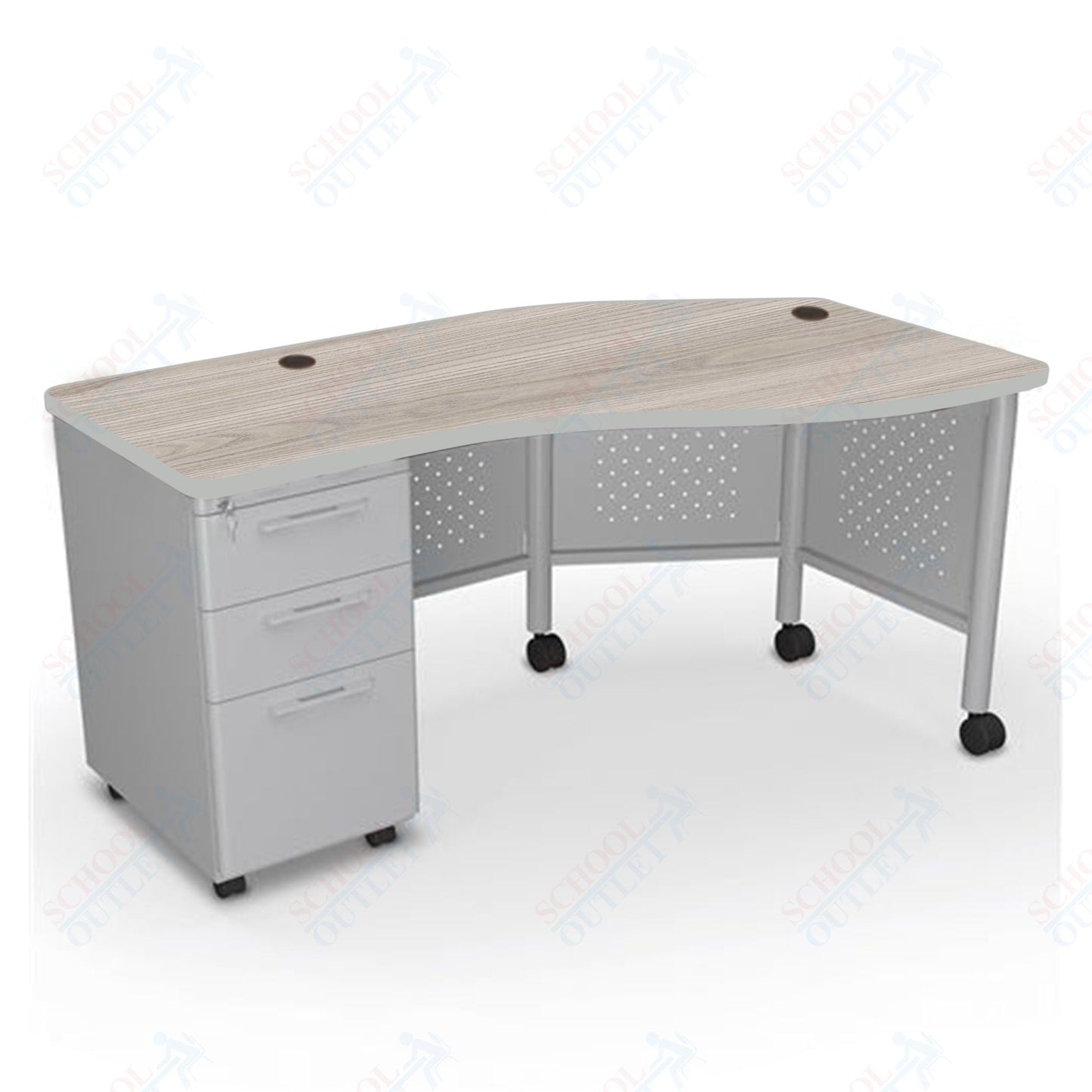

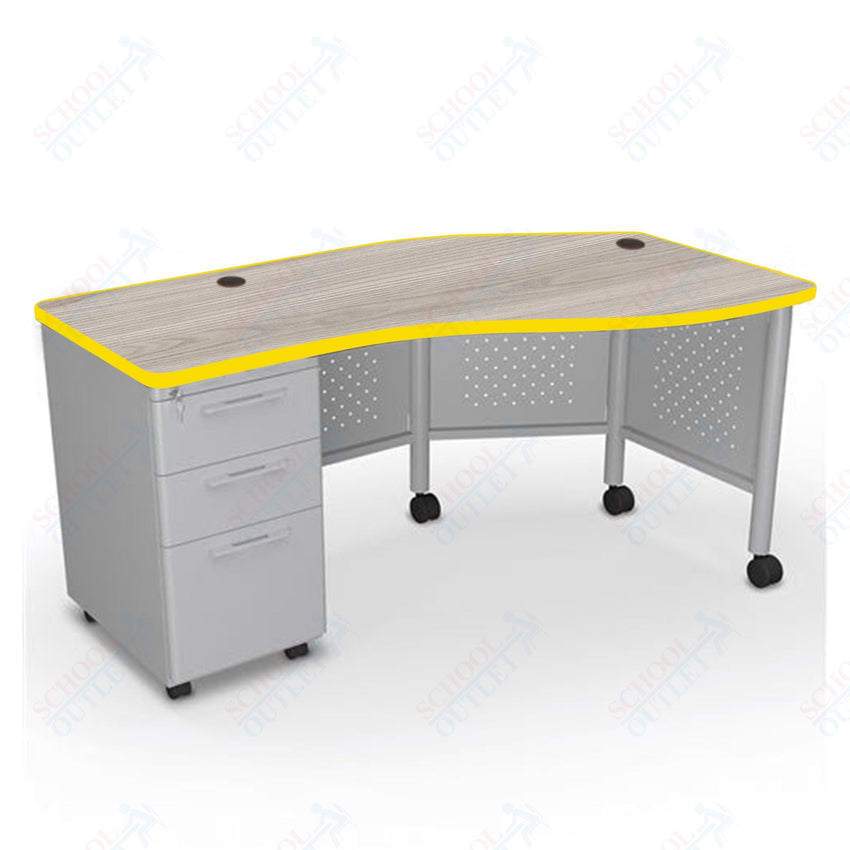

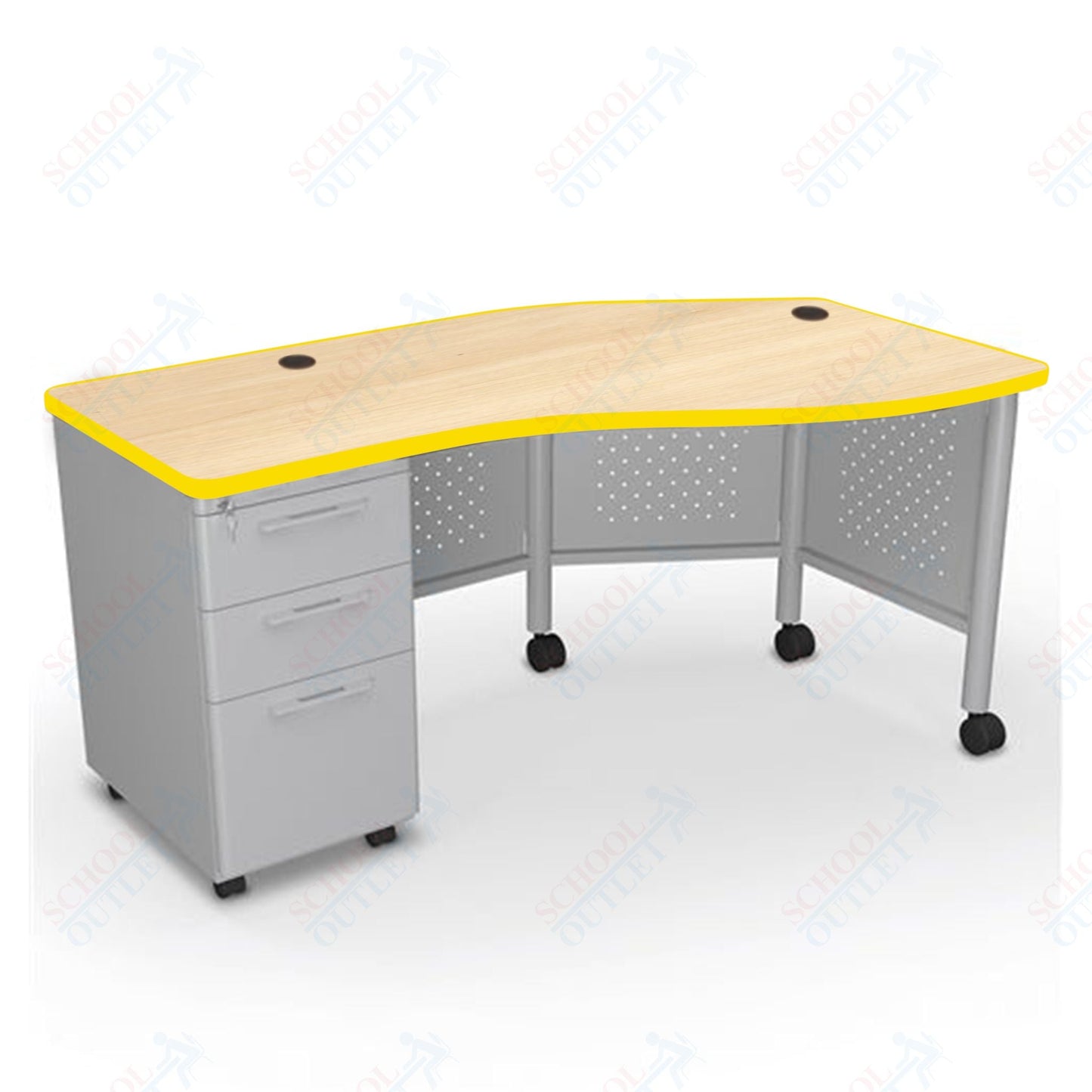

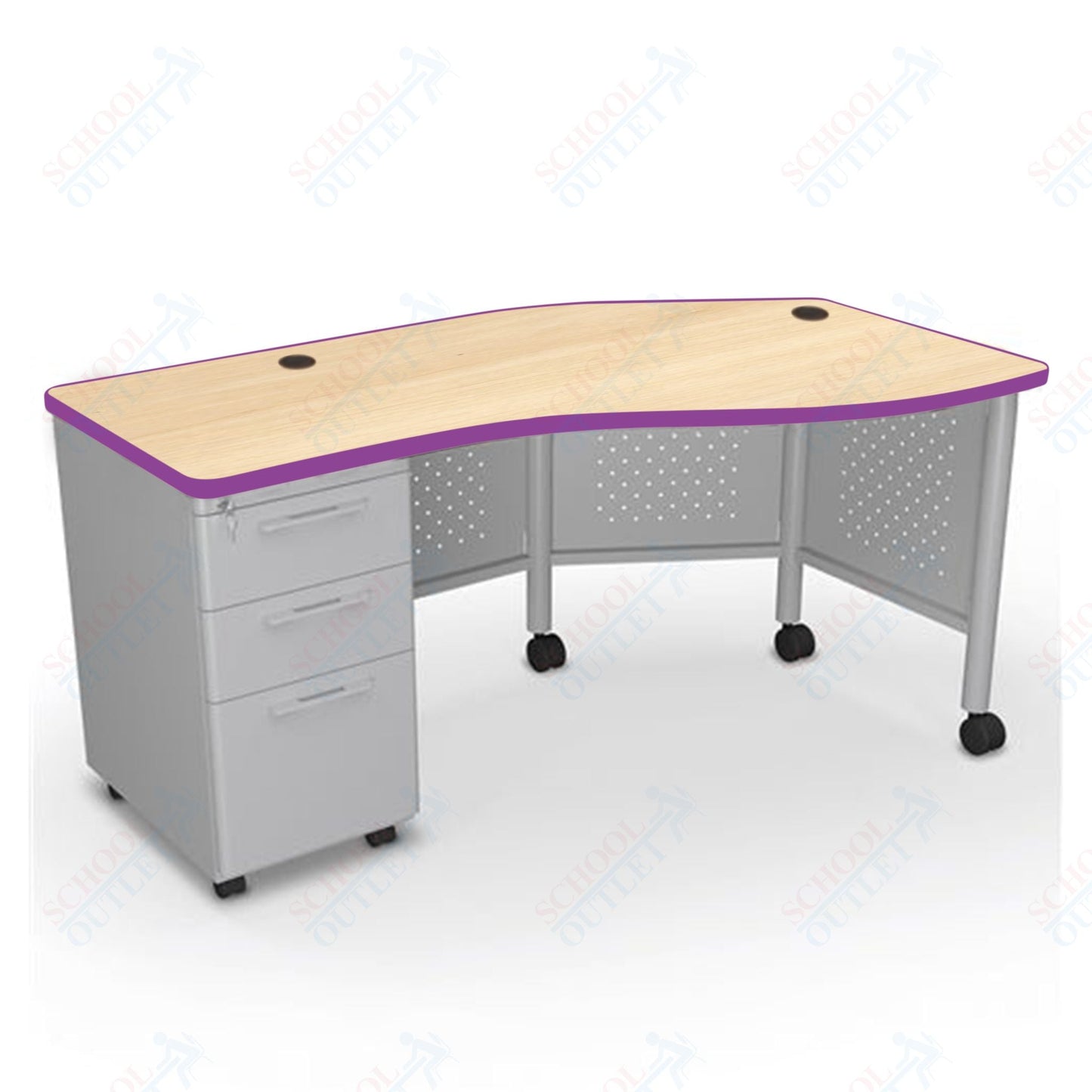

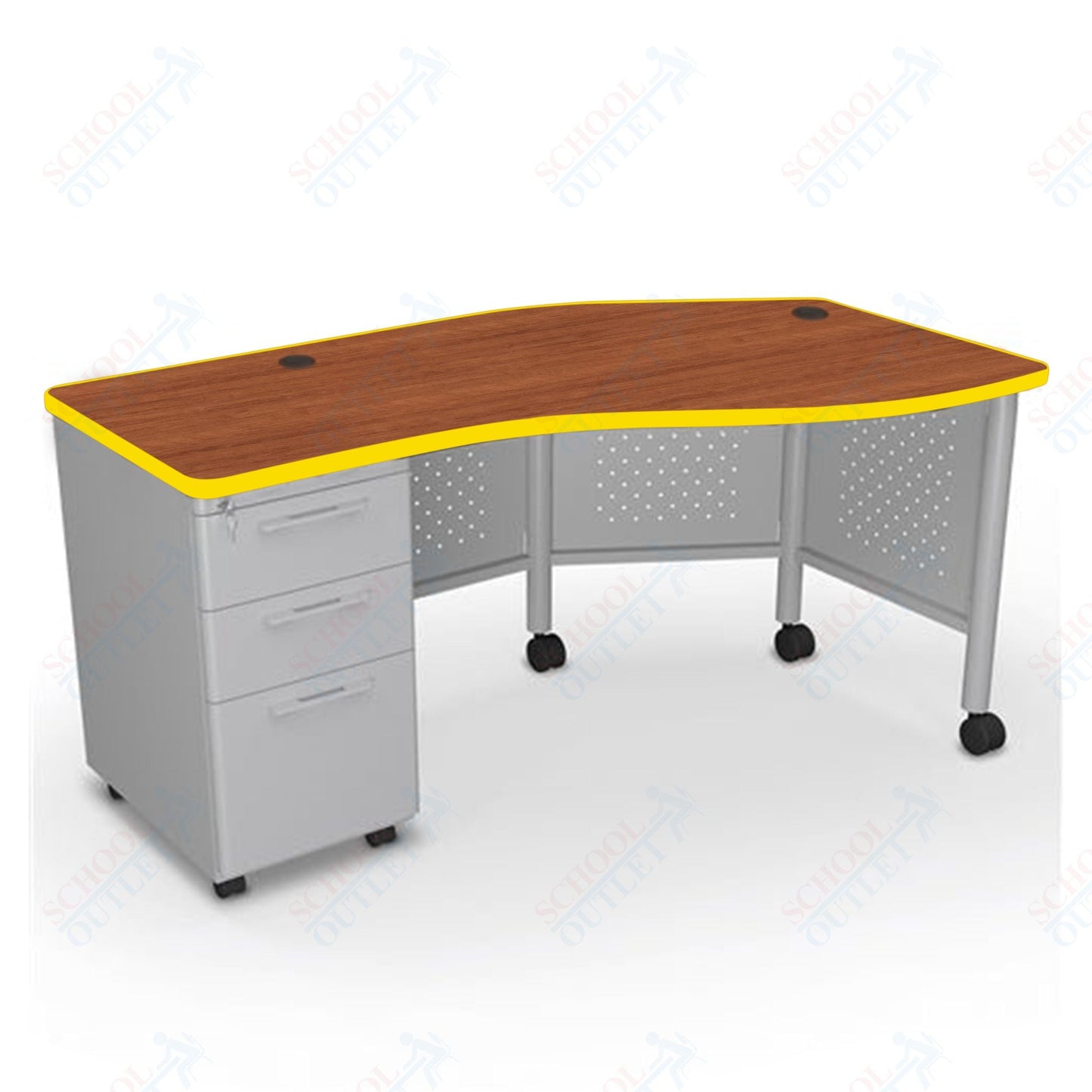

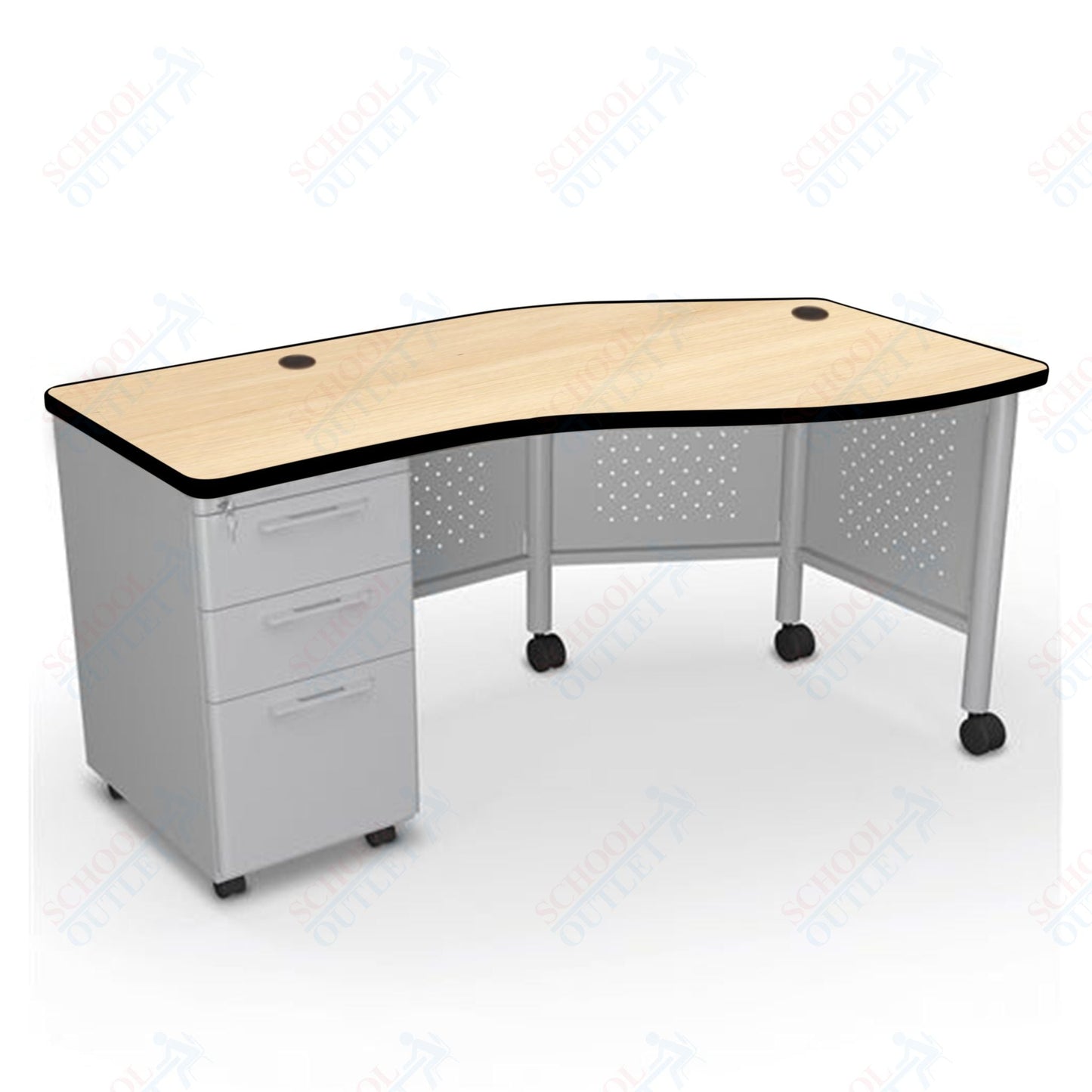

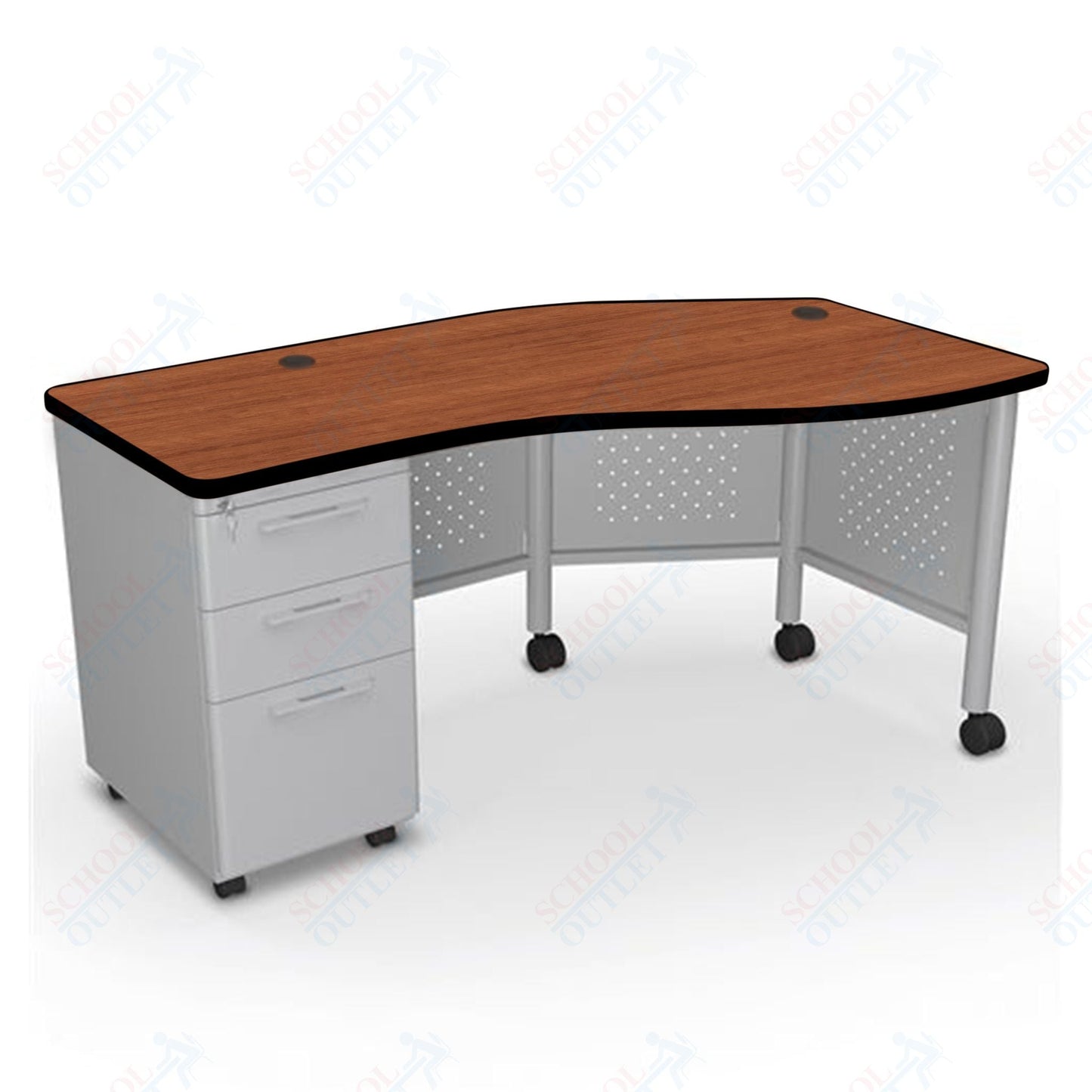

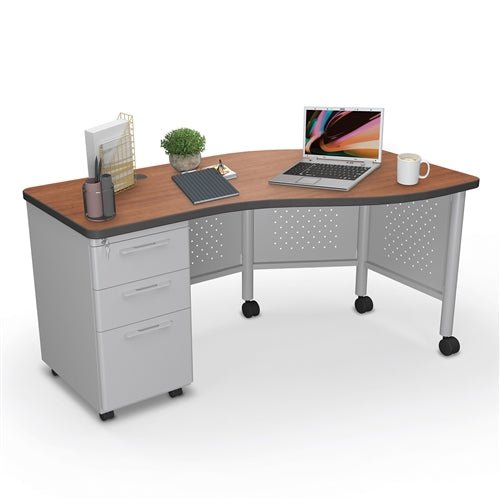

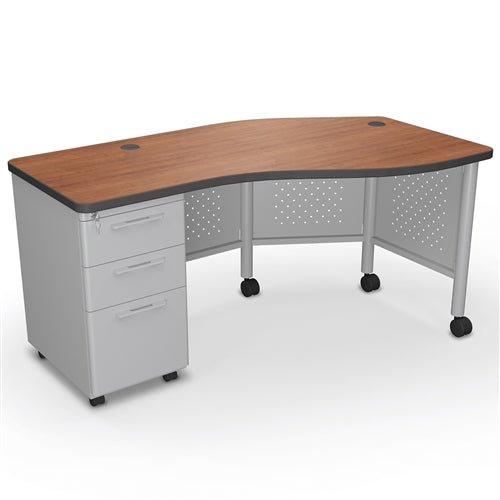

Avid Modular Desk Systems - Left-handed desk with pedestal file on Left side
The flexible, functional, and customizable design of the Avid Desks makes
creating your ideal workspace a breeze.
The top is made of 1 1/8Ă® Particleboard Core with 3mm Flat Vinyl T-Mold
Edge. The work surface is constructed of 45# particleboard core with
high pressure laminate (HPL) top surface and phenolic backer sheet for
balanced construction. 1 1/8Ă® 3mm flat vinyl t-mold is secured to the work
surface with brad nails along the perimeter.
Made of 18 Ga steel, the modesty panel is available in both 60Ă® and 72Ă®
options depending on your table size. The panel is 500mm tall.
The pedestal filing cabinet measures 28.73Ă®H X 14.88Ă®W X 21.5Ă®D. There
are two drawers holding 4Ă®H x 12.6Ă®W x 19.7Ă®L and one larger drawer .
One is 9.75Ă® deep and two are 4Ă® deep. The pedestal rests on four 2Ă® casters
attached with one M5 x 5mm screw each.
For single pedestal desks, front and back legs are made with 18 Ga round
steel tubes welded to a 3mm thick steel mounting plate. Plate has eight
screw holes for wood screws to attach directly to top. Two 3Ă® casters with
M8 x 15mm stems screw into threaded inserts welded into legs. Return
desks use a similarly constructed leg with two leg tubes welded to a single
steel plate with holes for six wood screws. Two 20 Ga, 25mm square steel
tubes are welded in between legs for reinforcement.
