Diversified Woodcrafts Painting Hood and Cabinet System (Diversified Woodcrafts DIV-8200M)
Diversified Woodcrafts Painting Hood and Cabinet System (Diversified Woodcrafts DIV-8200M)
$7,829.85
Lead Time: 4 - 6 Weeks
-
Model#: DIV-8200M
-
Limited Lifetime Warranty
-
Assembly Required
-
Country of Manufacture: United States
This product is produced & manufactured in the USA with American workers and is regulated by the FTC.
Product Details

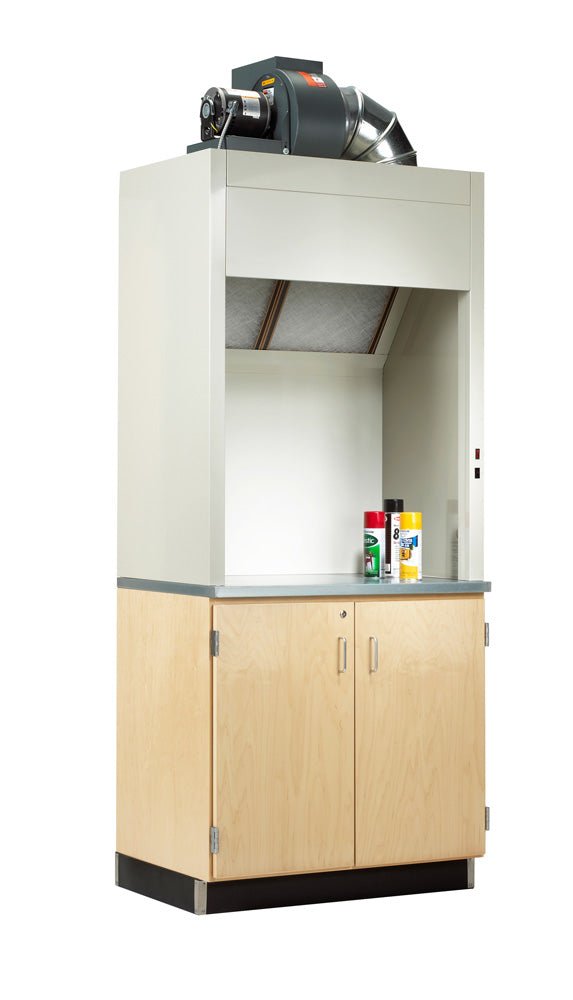

The Shain Paint Booth is fabricated of 18 guage steel with corrosion resistant, poweder coat baked epoxy finish. The upper booth enclosure includes a standard vapor-proof light and two filters set in an easy to change flange bracket system. Globed interior light is mounted and wired to common juntcion box. Blower motor operates at an RPM desightned to provide 100 LFM and apporximately 3/4" of static pressure. Blower is mounted on top and wired to common junction box. Cabinet constructed of solid hardwood, solid maple and maple veneers with locking double doors and one adjustable shelf.
Product Features
- 1/3 Horsepower motor requires a 125 volt, 20 amp circuit hard wired into a junction box. External junction box not included
- Blower motor operates at an RPM designed to provide 100 LFM and approximately 3/4" of static pressure and it is mounted on top of the unit
- Includes a Globed interior light vapor-proof light and two easy to change filters for air quality
- The Paint Booth is fabricated of 18 gauge steel with corrosion resistant, powder coat baked epoxy finish
- External Venting and Duct work not included
Product Specs
Details
| assembly | Assembly Required | doors | 2 Locking doors |
|---|---|---|---|
| finish | Earth-friendly UV | warranty | Limited Lifetime Warranty |
| weight | 337 lbs | country of manufacture | United States |
| model # | DIV-8200M | adjustable-height shelves | 1 in |
Dimensions
| depth | 24 in | height | 97.75 in |
|---|---|---|---|
| width | 36 in |
