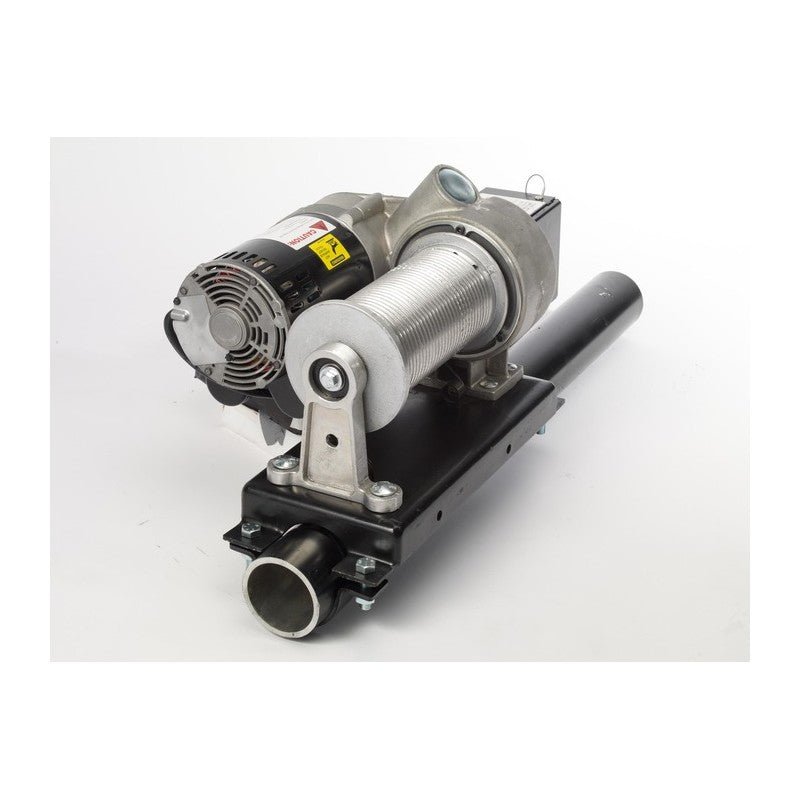

Gared Performance Sports Systems Electric Hoist with Key Switch, 220V (GPS-1194-220V)

Product Features

• 220V Direct Drive Motor Features a robust 3/4 HP (or up to 1 HP) motor specifically configured for 220V operation, providing high torque for heavy equipment.
• Vibration-Resistant Limit Switches Easy-to-set limit switches are designed to stay locked in their positions despite heavy gymnasium vibrations.
• Momentary Key Switch Operation Supplied with a secure 3-position key switch (Up/Off/Down) that prevents unauthorized use of overhead equipment.
• Stainless Steel Plate The wall-mounted switch includes a professional, industrial-grade stainless steel cover plate for durability and aesthetics.
• Versatile Mounting Positions The frame is designed to be mounted in any orientation, providing maximum flexibility during installation in complex ceiling structures.
• 20-Minute Duty Cycle Rated for a continuous 20-minute run time at maximum load, allowing for the turnover of an entire facility without motor rest.
• 5-Year Limited Warranty Backed by an industry-leading institutional guarantee covering the motor and structural integrity.
• 1,250 lb Lifting Capacity Specified to lift and hold up to 1,250 lbs (566 kg), easily managing massive basketball structures and gymnasium dividers.
• Belt-Free Safety Utilizes a direct-drive system with no dangerous belts, pulleys, or external chains, significantly reducing mechanical failure points.
• Hardened Steel Worm Gear Engineered with a double-reduction worm gear drive that handles both radial and thrust loads for a lifetime of use.
• Passive Uni-Directional Brake Includes a self-locking gear system and a passive brake to ensure the load is securely held in any position when stopped.
• Large Diameter Grooved Drum Features precision-machined grooves that prevent cable overlapping, ensuring proper coiling and long cable life.
• Slack-Tension Roller Equipped with a constant-pressure roller that guarantees correct cable tracking, even when the cable becomes slack.
• Maintenance-Free Gear Case Encased in a lifetime-sealed housing with precision ball bearings and premium seals that never require lubrication.
• Thermal Overload Protection The motor is programmed with thermal protection and a 13-amp stall limit to prevent damage to the hoist or building structure.
