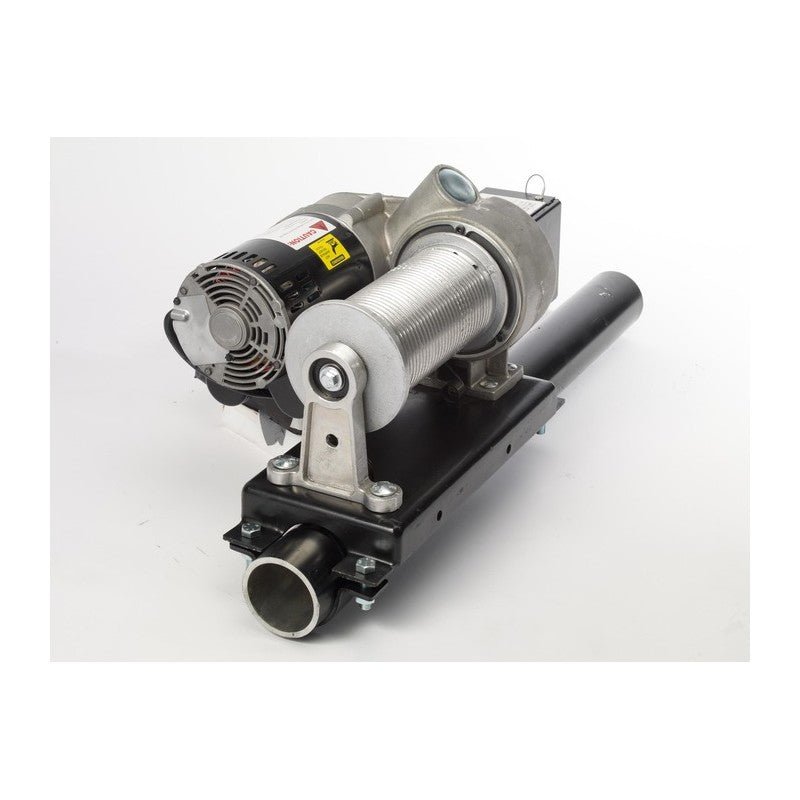

Gared Performance Sports Systems Electric Hoist with Key Switch (GPS-1194)

Product Features

• Powerful 3/4 HP Motor A high-performance, instantly reversing UL-listed motor designed to handle heavy institutional loads with ease.
• Vibration-Proof Limit Switches High-precision limit switches stay locked in their settings, ensuring the unit stops exactly where intended despite gym vibrations.
• All-Metal Gear Construction Built exclusively with metal gears that outperform plastic alternatives, especially under high-heat or strenuous conditions.
• Key Switch Control Includes a single momentary key switch that ensures only authorized personnel can operate the overhead equipment.
• Stainless Steel Cover Plate The wall-mounted switch features a professional, industrial-grade stainless steel plate for a clean and durable finish.
• Extensive Duty Cycle Rated for a 20-minute duty cycle, allowing for multiple consecutive lifts across a large facility without overheating.
• 1,250 lb Lifting Capacity Specified to run continuously at a maximum rated load of 1,250 lbs (566 kg) for a 20-minute duty cycle.
• Direct Drive System Engineered with a direct-drive mechanism, eliminating the safety risks and maintenance needs of belts or pulleys.
• Hardened Steel Worm Gear Features a rugged double-reduction worm gear drive that manages both radial and thrust loads for superior durability.
• Positive Locking Mechanism The worm gear drive provides a natural, positive lock, ensuring a rock-solid hold on the load whenever the motor stops.
• Precision Machined Drum Large grooved drum ensures proper cable coiling and prevents overlapping, significantly extending the life of your steel cable.
• Integrated Tension Roller Features a specialized roller that guarantees correct cable tracking, even during "slack" conditions when the load is not fully engaged.
• Sealed Gear Case The unit is encased in a lifetime-sealed housing with precision ball bearings, providing maintenance-free operation for years.
• Stall Protection The motor is electronically governed to stall at 14 amps, protecting the hoist and your facility's structure from accidental over-torquing.
