NPS Multi-Purpose Dolly (NPS-DY-MPD)

NPS Multi-Purpose Dolly (NPS-DY-MPD)

Skip to product information
1 of 11
Variant missing image
Regular price $574.85
Regular price

Sale price

$574.85

SKU: NPS-DY-MPD

Lead Time: 6 - 8 Weeks

View full details
  • Model#: NPS-DY-MPD

  • 10-Year Limited Warranty

  • Country of Manufacture: China

View More Details →
certified
Green Guard

This product complies with strict chemical emissions limits and meets the indoor air quality pollutant standards for sensitive environments such as indoor schools or offices.

Product Details

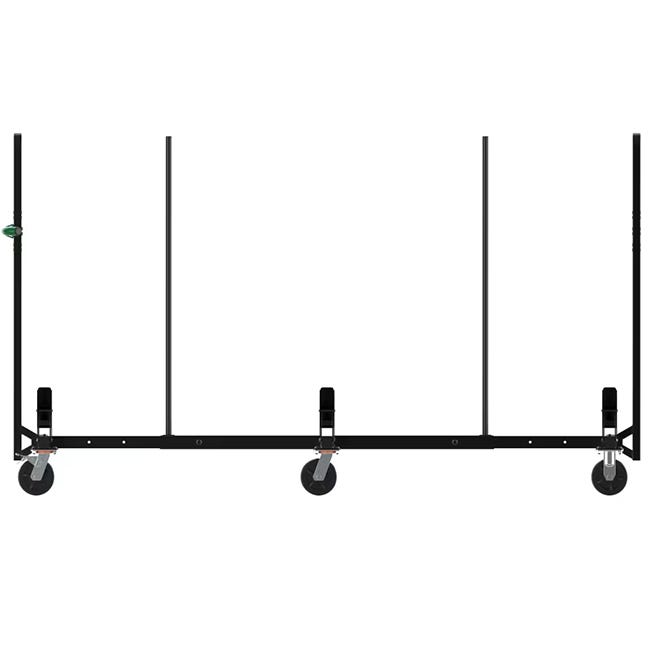

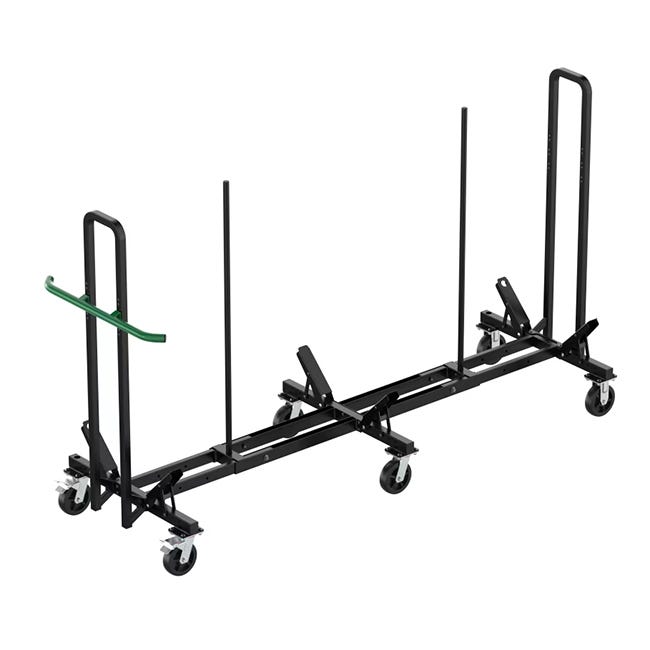

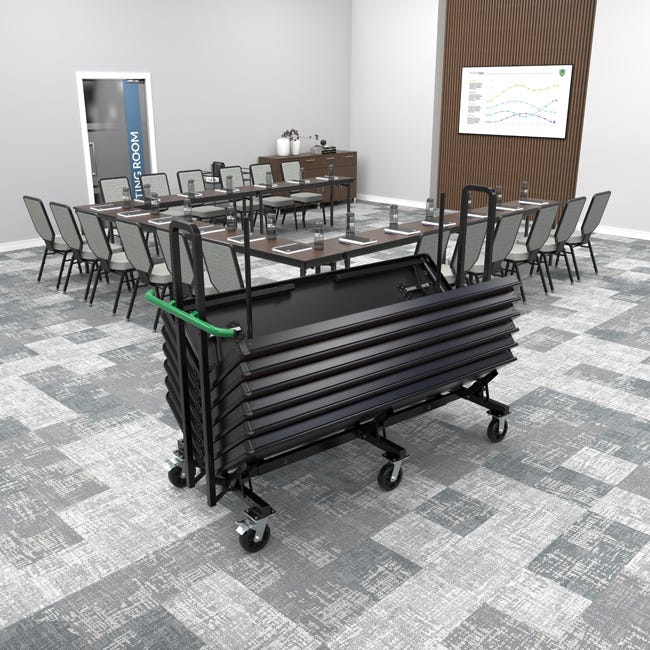

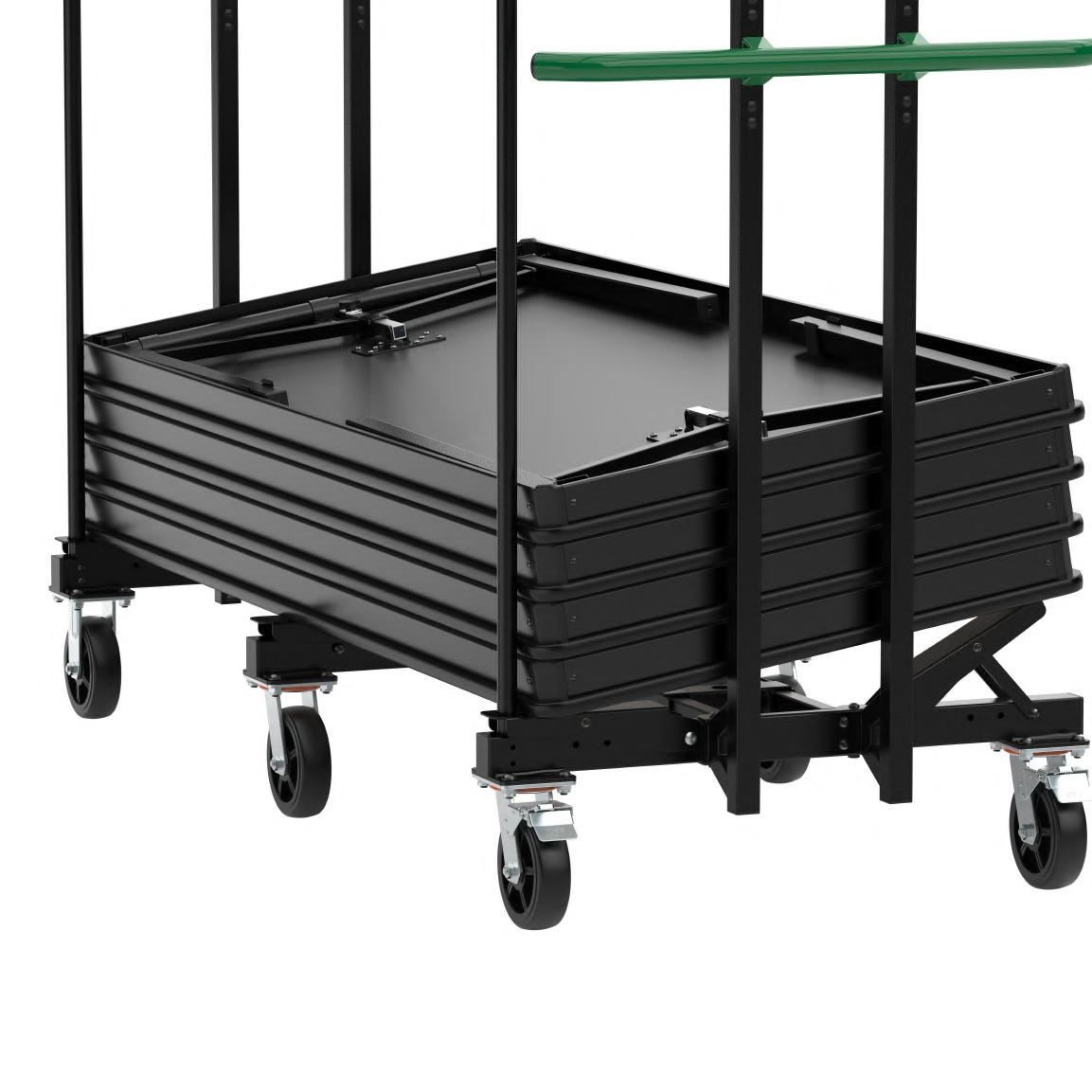

The Multi-Purpose Dolly by National Public Seating offers a robust and highly adaptable solution for the efficient storage and transportation of BT Series seminar tables across a range of sizes, specifically accommodating 18x60, 18x72, and 18x96 inch configurations. Constructed from heavy-duty 14-gauge tubular steel and finished with a sleek and durable black powder coating, this dolly is built to withstand the rigors of frequent use. Its thoughtfully engineered three-part frame features a central body incorporating two channels designed to securely cradle the ends of the tables. This central section also provides support for the vertical table posts, ensuring stability during transit. Enhancing user ergonomics, the dolly is equipped with two adjustable handles: one fixed handle for consistent control and one removable handle that offers three distinct height settings, allowing operators to customize the handling position for optimal comfort and leverage, thereby reducing strain during movement.

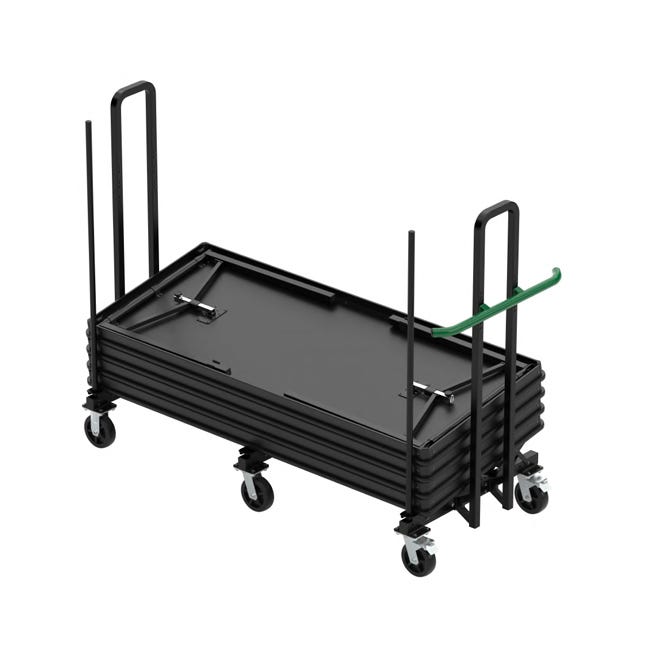

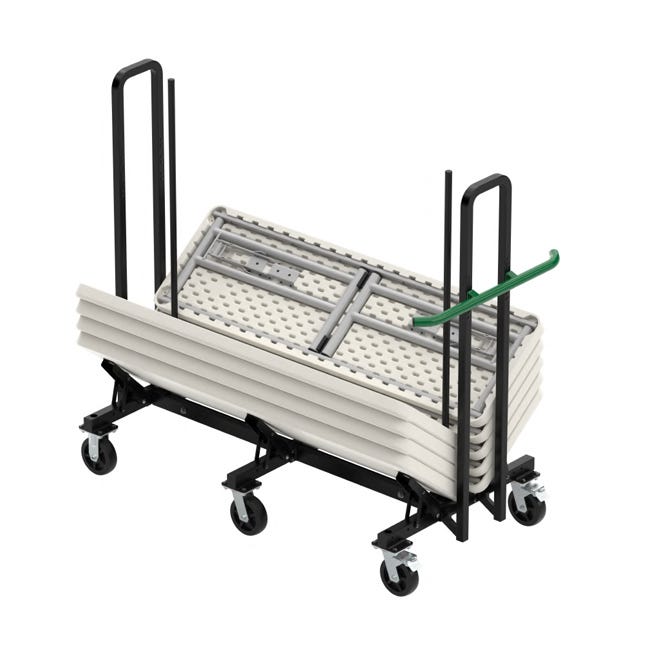

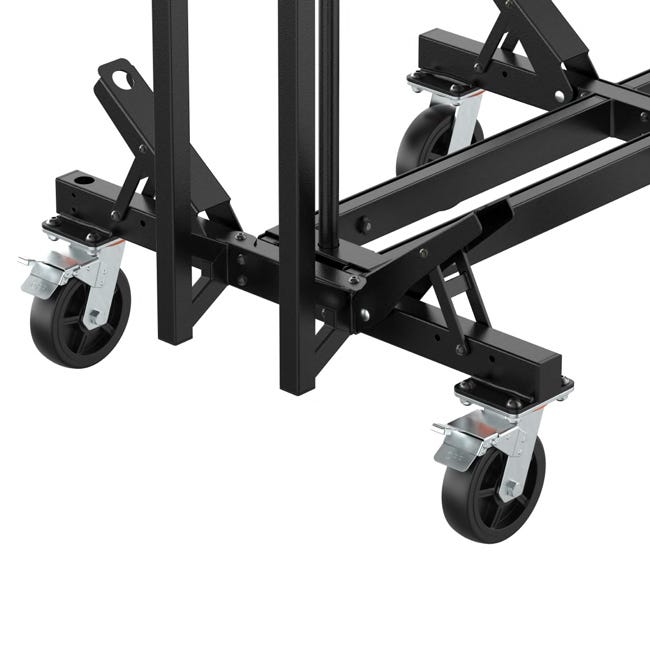

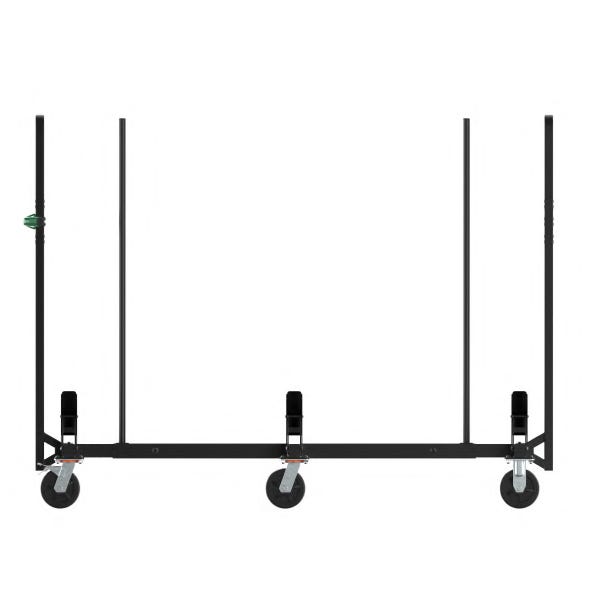

Mobility is a key feature of the DY-MPD, facilitated by a system of six strategically placed casters. At the handle end, two swivel casters are equipped with brakes, providing secure stopping and positioning capabilities. Two additional swivel casters are located in the middle of the dolly, allowing for smooth and agile maneuvering, while two fixed casters at the opposite end contribute to stability and controlled directional movement. The dolly's design incorporates adaptable support mechanisms that can be easily adjusted to accommodate varying table angles, enabling it to navigate through doorways with a minimum width of 32 inches. Furthermore, with minor adjustments to the table angles, the dolly's capacity can be expanded to transport a greater number of tables, with an expanded width of 34 inches. While typically configured to load tables in two columns of 18 inches wide, the dolly's versatility extends to handling wider 30-inch tables, such as 30x60, 30x72, and 30x96 inch sizes, by simply shifting the central tube to create the necessary clearance. Secure angle adjustments are maintained through the use of screws, ensuring that the tables remain stable during transport. Additionally, pre-drilled holes at the ends of the dolly provide precise and consistent table placement for 60, 72, and 96-inch long tables, streamlining the loading process and ensuring a secure fit.

Product Features

  • Constructed from 14-Gauge Tubular Steel: Provides exceptional strength and durability for transporting heavy loads.
  • Six Super-Duty 5" Hard Rubber Casters: Provides smooth and reliable rolling, even with heavy loads.
  • Two Fixed Casters: Offer stability and help maintain a straight path during transport.
  • Two Swivel Casters: Allow for easy turning and maneuvering in tight spaces.
  • Two Swivel/Locking Casters: Provide both maneuverability and the ability to securely lock the dolly in place when stationary.
  • Narrow Doorway Compatibility: Angle supports are specifically designed to allow double stacks of 18" seminar tables to fit through a 32" doorway.
  • Ten-Year Warranty: Demonstrates the manufacturer's confidence in the dolly's quality and durability.
  • Black Powder-Coated Finish: Offers a sleek appearance and protects the steel frame from scratches and wear.

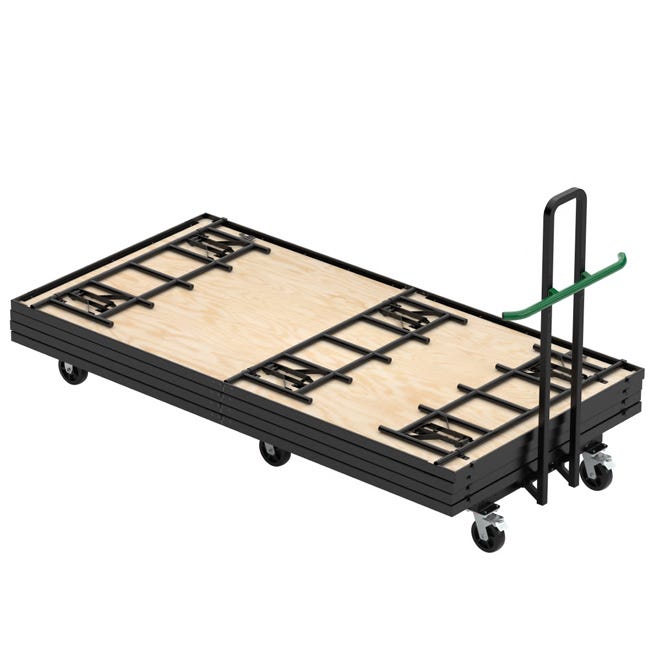

  • Adjustable Length Design: Can be set to three different lengths (60", 72", and 96") to securely hold tables and stages of varying sizes.
  • Height-Adjustable Thermoplastic-Coated Handle: Allows users to customize the handle height for a comfortable and secure grip, enhancing maneuverability.
  • Two Removable Support Posts: Secure tables at multiple points, ensuring stability and preventing movement during transport, regardless of size or shape.
  • Front Tubular Handle with Thermoplastic Grip: Designed for comfortable and efficient pushing of the dolly.
  • Rear Tubular Handle: Facilitates easy pulling of the dolly, providing versatile handling options.
  • Customizable Angle Supports: Allows for angle adjustments to securely store and transport tables and stages at various inclinations.
  • Angle Adjustments Secured with Screws: Ensures that the chosen angle remains fixed and stable during movement.

Resources and Downloads

Product Specs

Details

casters 2 Fixed, 2 Swivel, And 2 Swivel/Locking fits Nps Rectangular Tables, Stages And Risers
frame material 14-Gauge Black Powder-Coated Tubular Steel leg option 5" Hard Rubber Casters
warranty 10-Year Limited Warranty weight 135 Lbs
weight capacity 600 Lbs country of manufacture China
model # NPS-DY-MPD

Dimensions

length 60", 72", and 96" overall dimensions 32" W x 57.5" H
overall height 57.5 in overall width 32 in
